Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported |
| • |
Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF Frame Rate Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 4 Mbps Dual-Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps |
| • |

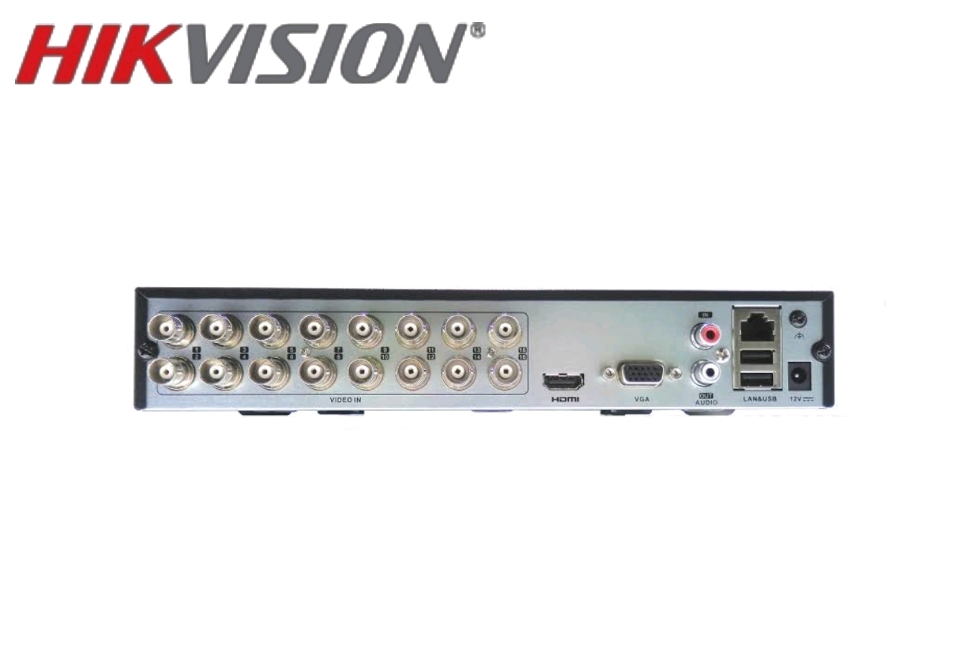

Video And Audio IP Video Input 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection HDTVI Input 1080p25, 1080p30, 720p25, 720p30 AHD Input 1080p25, 1080p30, 720p25, 720p30 HDCVI Input 1080p25, 1080p30, 720p25, 720p30 CVBS Input PAL/NTSC HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode HDMI/VGA simultaneous output Audio Input 1-ch RCA (2.0 Vp-p, 1 K?), and 16-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Synchronous Playback 16-ch |
| • |
Network Total Bandwidth 96 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection 128 Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface |
| • |
Auxiliary Interface SATA 1, SATA interface Capacity Up to 10 TB capacity for each disk USB Interface 2 × USB 2.0 |
| • |
General Power Supply 12 VDC, 1.6 A Consumption ? 10 W (without HDD) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) Weight ? 1.1 kg (without HDD, 2.4 lb.) |
